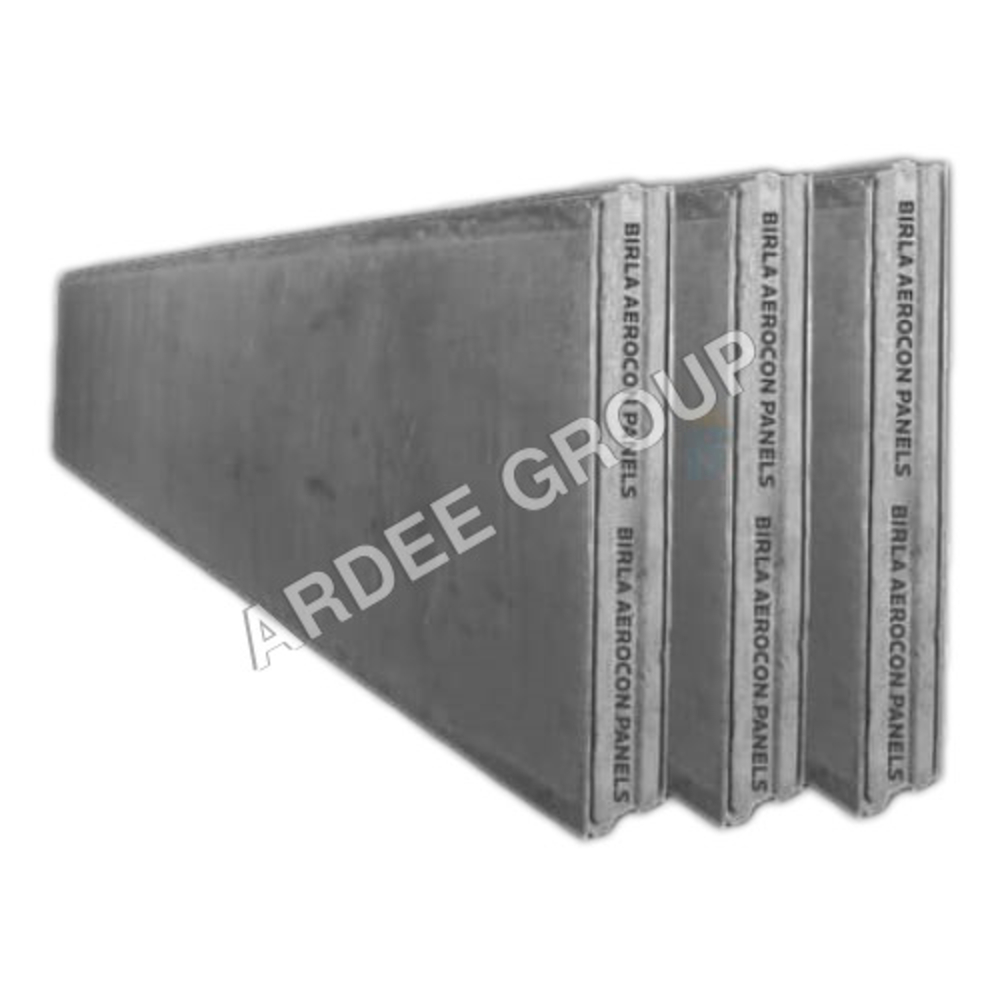

75mm Aerocon Panel

About 75mm Aerocon Panel

75mm Aerocon Wall Panel Specification

• Thickness: 75 mm

• Width: 600 mm

• Length Options: 2400 mm, 2700 mm, 3000 mm

• Nominal Weight: 47 to 58 kg per square meter

• Density: Approximately 800 kg per cubic meter

• Thermal Conductivity: 0.18 to 0.22 W per mK

• Sound Insulation: 36 to 40 dB

• Fire Resistance: 120 minutes

• Fire Propagation Index: 3 to 3.7

• Axial Compression Load Capacity: 90 kN per meter width

• Bending Load Capacity over 2.9 m span: 70 kg per square meter

• Flexural Strength: 40 to 50 kg per square cm

• Joint Type: Tongue and Groove

• Material Composition: Fiber reinforced cement facing sheets with aerated cementitious core made of cement fly ash and additives

• Features: Lightweight, water resistant, termite resistant, fire resistant, eco friendly, fast installation, reusable

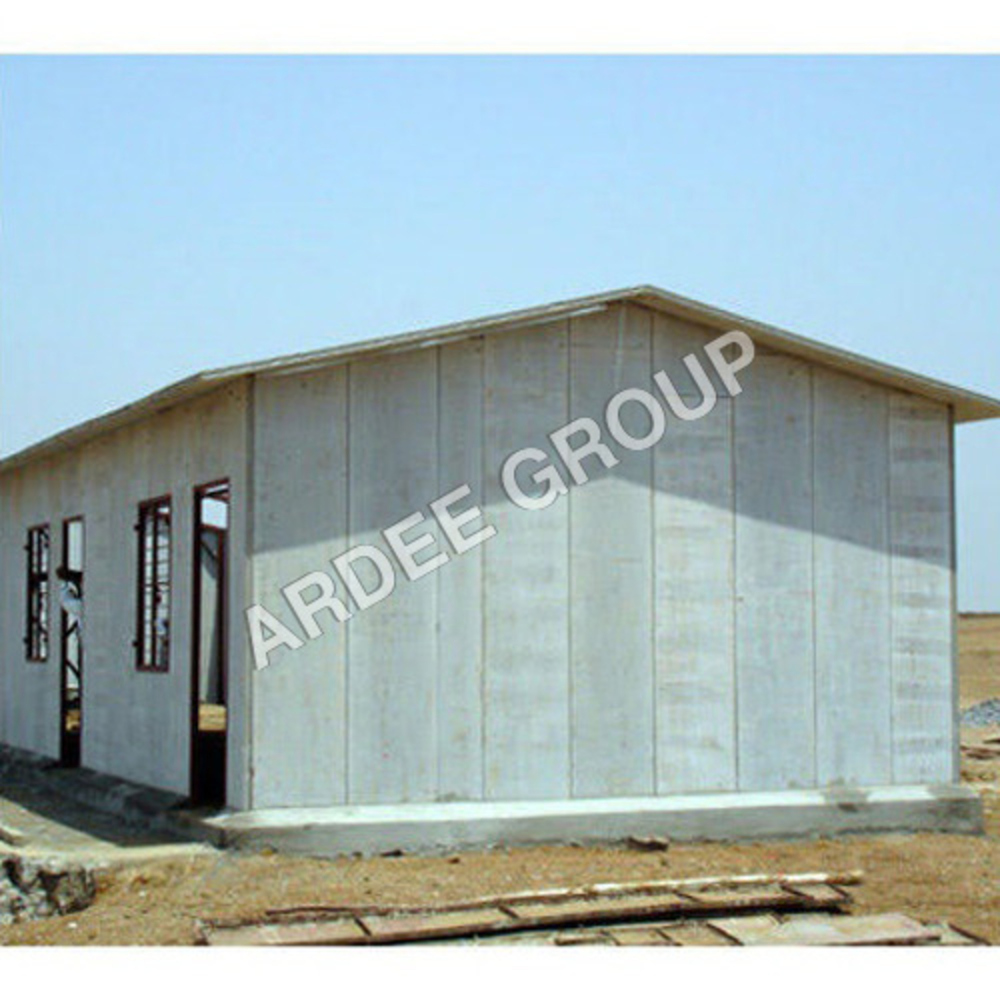

• Applications: Partition walls, prefabricated structures, mezzanine floors, cladding, boundary walls



• Finish: Smooth surface ready for paint or plaster

• Installation Method: Dry construction using screws and adhesive without plastering

• Eco Friendliness: Contains fly ash and uses no timber certified green material

• Durability: Resistant to weather termites and corrosion

• Suitable Applications: Partition walls load bearing non load bearing walls mezzanine floors cladding boundary walls prefabricated structures


• Finish: Smooth surface ready for paint or plaster

• Installation Method: Dry construction using screws and adhesive without plastering

• Eco Friendliness: Contains fly ash and uses no timber certified green material

• Durability: Resistant to weather termites and corrosion

• Suitable Applications: Partition walls load bearing non load bearing walls mezzanine floors cladding boundary walls prefabricated structures
